Product Features
Why Brilliance Laser Inks?
![]() |

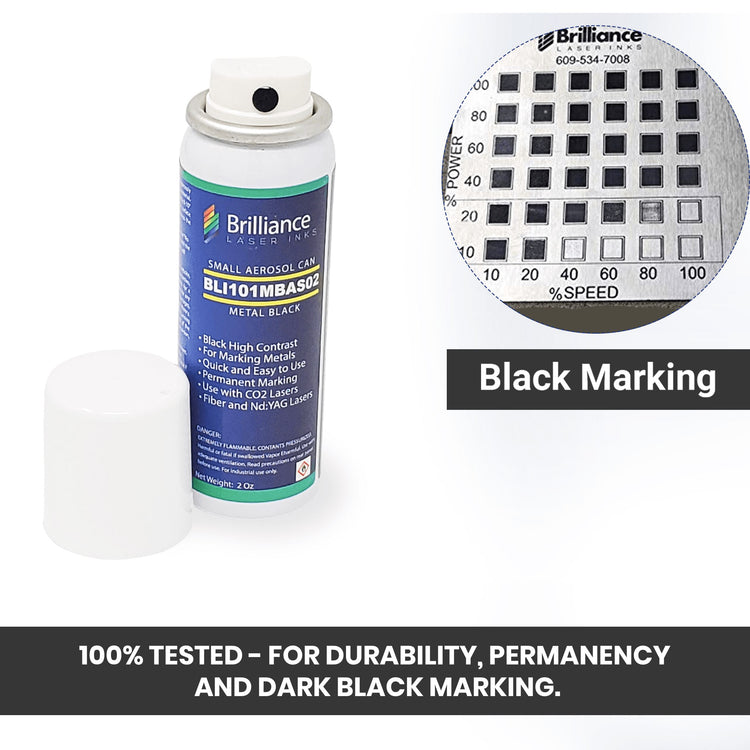

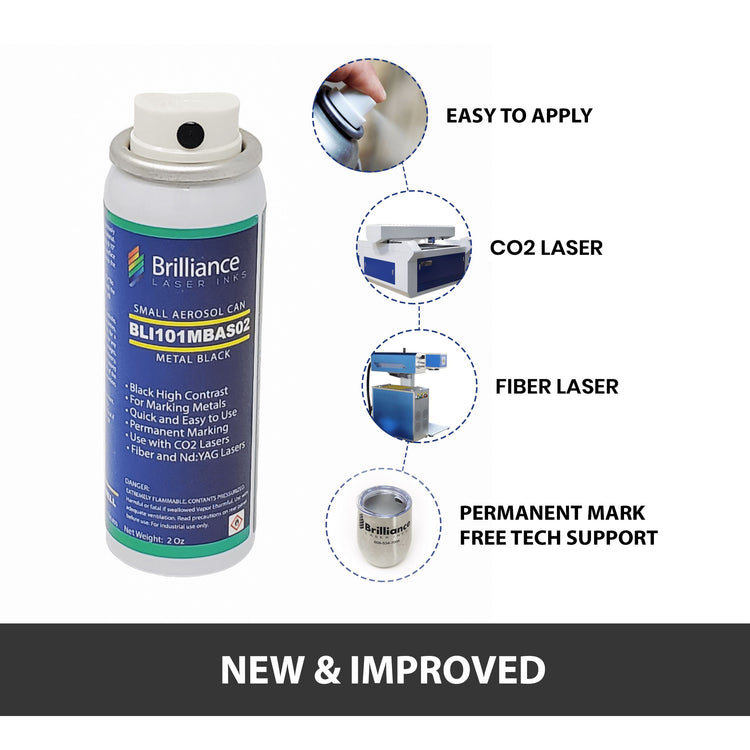

Laser marking made easy with our Aerosol Spray (in 2 oz & 12 oz)Exceptionally adaptable laser marking inks to create high quality permanent mark on a various metal surfaces. With just a shake and a spray, conveniently make a permanent mark on your metal substrate with our aerosol spray. It comes in two sizes: 2 oz. and 12 oz to fit your needs. Note that this product does not include any alcohol in the package. Below application tutorial is for instructional purposes only. |
|

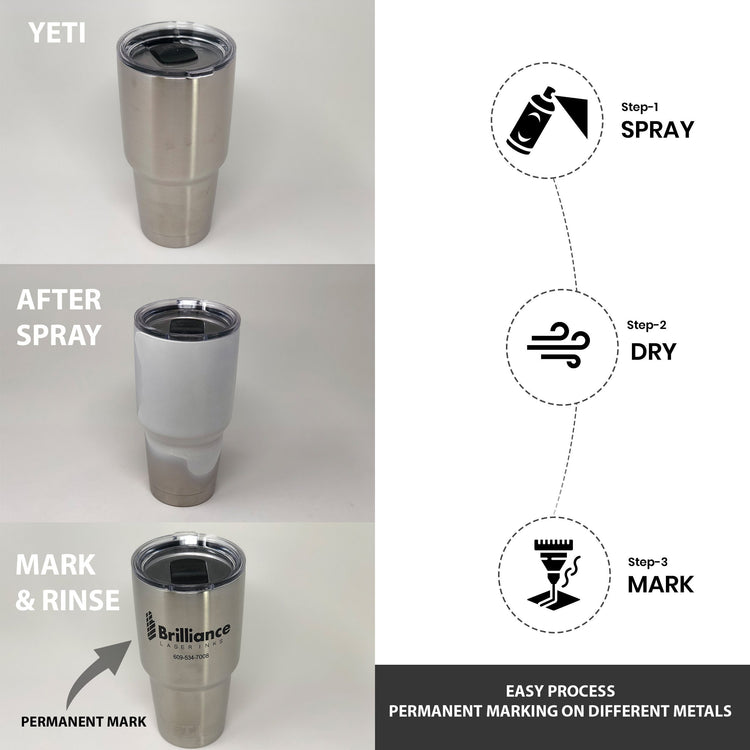

How To Apply Aerosols
-
Step 1
Clean the substrate with denatured alcohol so it's free of any dirt and oil.
Shake the bottle well for approximately 2 minutes to make sure that all contents are mixed.
-
Step 2
Hold the bottle at 45° degrees and spray 6-8 inches from the substrate surface using left to right motion. Apply a thin coat as long as you do not see through the surface.
Wait for the mixture to dry completely or use a hair dryer to dry it in seconds.
-
Step 3
Adjust and focus your laser settings according to the material and make your mark!
You may refer to the table below on Suggested CO2 Laser Machine Settings.
-
Step 4
No waiting time needed to wash off! Rinse with tap water or wipe with a wet cloth.

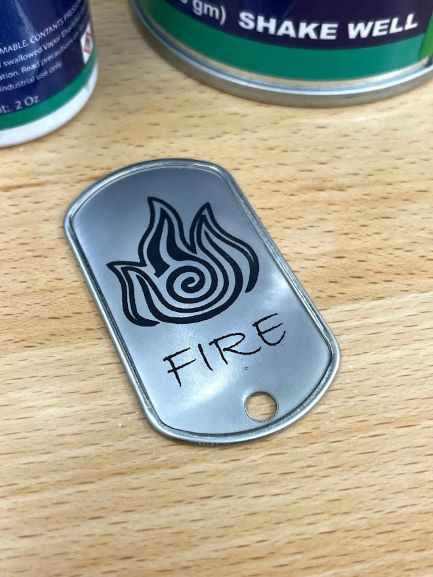

Voila! You now have a permanent on a finished product.
CO2 Laser Settings
Substrate | Power | Speed in Percent | Speed in mm/sec | DPI |
---|---|---|---|---|
General Metals (Tool steel, Stainless, Mild steel etc.) | 30W | 10% | 100 | 350-500 |
100W | 30% | 300 | 350-500 | |
Aluminum | 30W | 1% | 50 | 350-500 |
100W | 5% | 100 | 350-500 | |
Brass, Copper and other similar high heat conducting metals | 30W | 3% | 75 | 350-500 |
100W | 10% | 150 | 350-500 |
Fiber Laser Settings
Substrate | Power | Speed in mm/sec | Q-frequency | Hatch |
---|---|---|---|---|
Stainless Steel | 10W | 50 | 200 - 500 KHz | 0.1 mm |
Aluminum | 10W | 50 | 40 - 80 KHz | 0.1 mm |
Brass | 10W | 50 | 40 - 80 KHz | 0.1 mm |
Copper | 10W | 50 | 40 - 80 KHz | 0.1 mm |
Titanium | 10W | 50 | 200 - 500 KHz | 0.1 mm |
![]() |
![]() |
![]() |
![]() |
|
Brush Coverage (approx.) | 500 sq. in. | 1,000 sq. in. | 5,000 sq. in. | |
Spray Coverage (approx.) | 4,000 sq. in. | 1,000 sq. in. | 2,000 sq. in. | 10,000 sq. in. |
Colors | Black, Red (Copper) | Black, Red (Copper) | Black | Black |
Preval Ready | ✓ |
